14' LOOK Snowmobile Trailer

WW#49962



Selling Price: $6,800.00



Model:

  • LOOK
  • Model: AEDFT85X14SE3
  • 2019 Year
  • Color: Silver

Dimensions:

  • Flat top
  • V front
  • Main Frame: 2"x5" tube with 2"x4"x1/4" wall axle riser tube XM 24" center
  • Verticle: 69-1/2" posts
  • Sidewall: 1"x1-1/2" tube on 16" centers, 5" drop wall
  • Roof bow: 1"x2" semi crowned tube 16" centers

Weight:

  • Axle: single straight electric  5200# spring
  • Shipping weight: 1900 lbs.
  • GVWR: 5000 lbs.
  • Tires: ST225/75R15 6 lug radial
  • Swing up jack with dolly wheel

Exterior:

  • Walls: 24"H High performance kickplate
  • Exterior: metal .024 silver, 24"H .025 embossed ATP exterior lower bottom panel c/s & r/s
  • Stoneguard: 24"H ATP .025 embossed

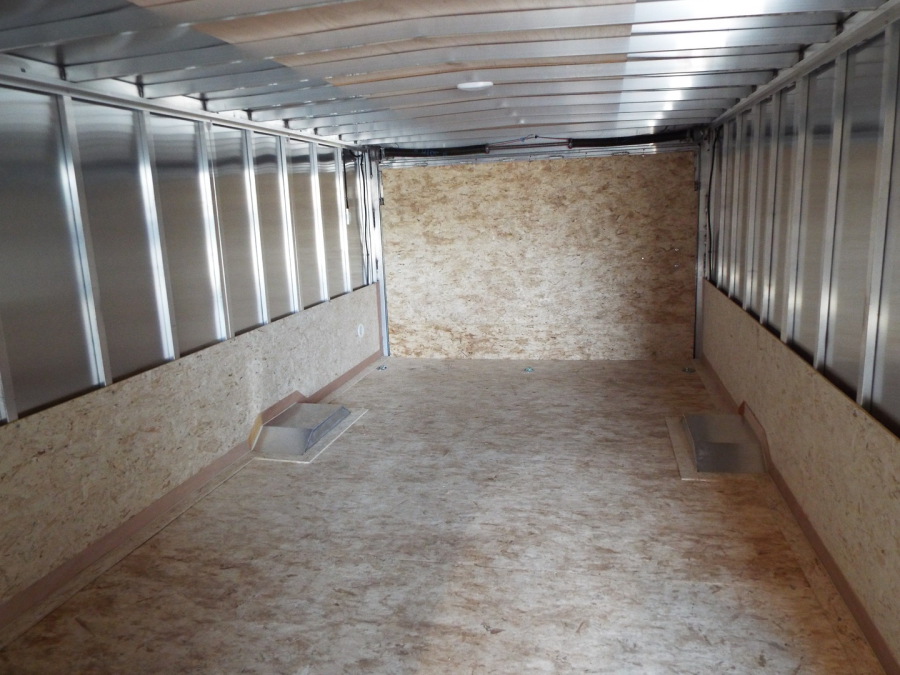

  • Floor: 3/4" high performance
  • Roof: 1 piece aluminum
  • Wheels: silver

Specs:

  • 3"x5" tube stacked on top of 3"x2"x1/4" wall tongue tube with 3rd member
  • 2" coupler

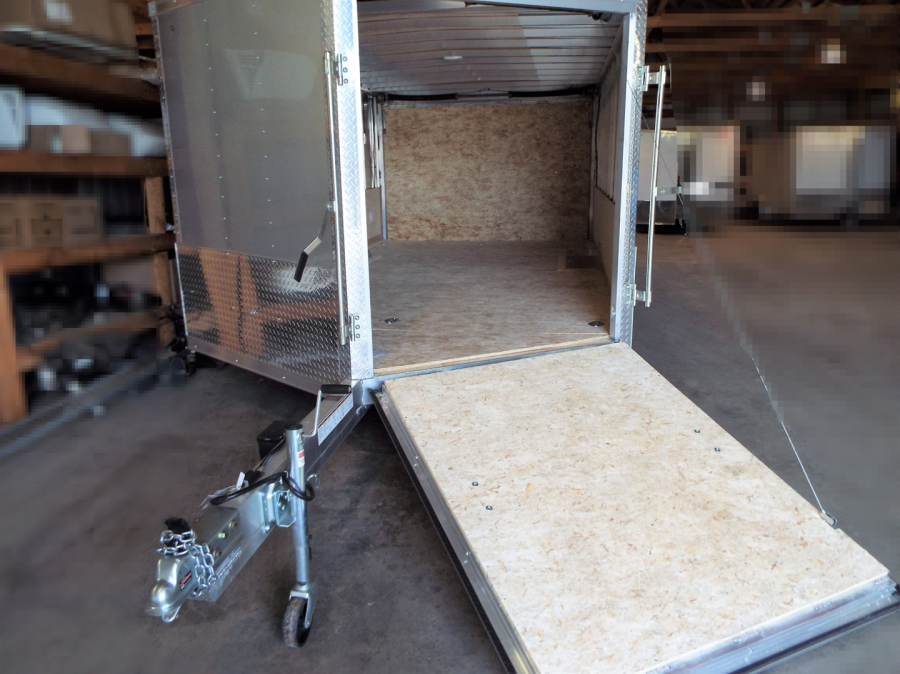

  • Rear ramp: with spring assist and zinc bar locks

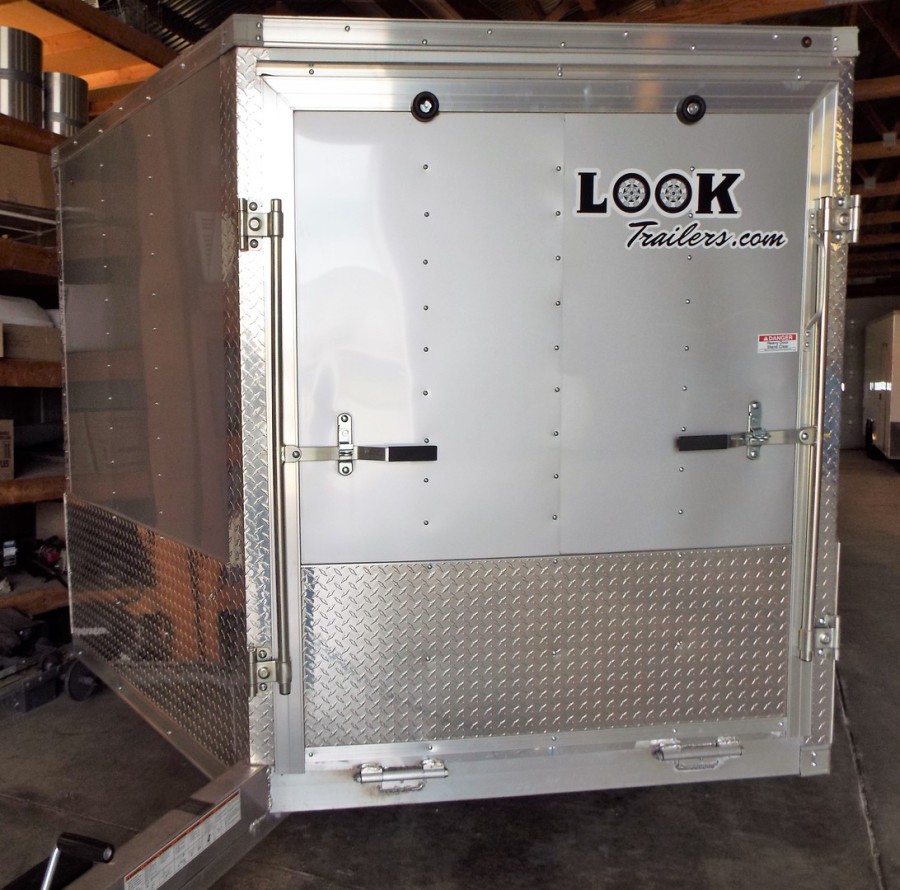

  • Front door: 51"w x 63"h with spring assist
  • Drive over wheel well box (45 degrees)
  • 6 recessed D rings in the floor, 2500 lbs bolted with aluminum plates 3 at front 3 at rear
  • 2 sidewall vents
  • 12V interior dome light with switch
  • LED red lens tail lights
  • Bullet LED red/amber lens clearance lights
  • Breakaway battery with switch
  • 7-way cable
